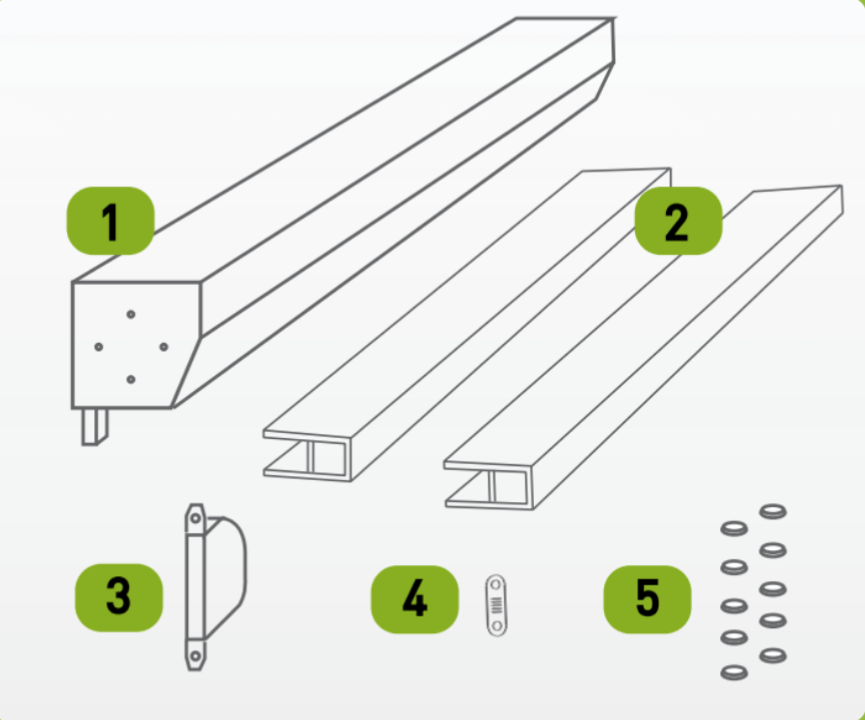

scope of delivery

  1. roller shutter box
  2. 2 guide rails
  3. belt winder
  4. belt guide
  5. cover buttons for guide rails
button label

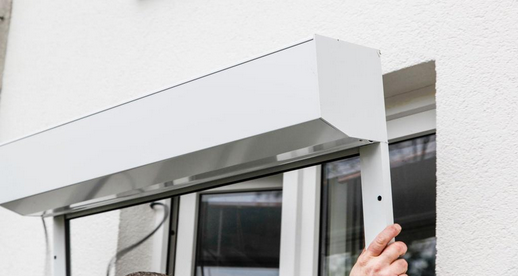

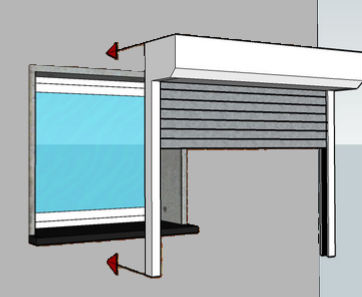

GLADI8A roller shutters are always mounted on the outside of the house wall. This means that the guide rails and the roller shutter box do not reduce the size of the window.

Remove all protective films, as they will come into contact with the surface when exposed to sunlight.

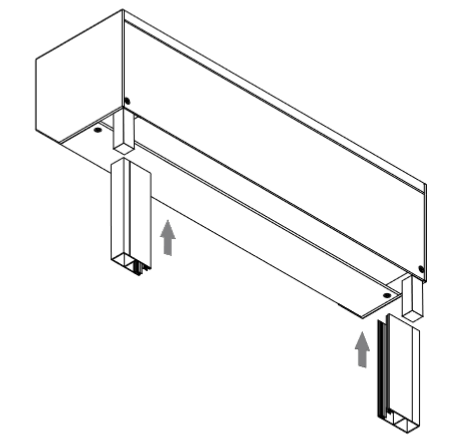

They are only used for transport. Now insert the box with the pins into the guide rails. To avoid unfortunate incidents, wedge the roller shutter now.

In order to operate the roller shutter, the
Drive belt should be routed inwards. Draw

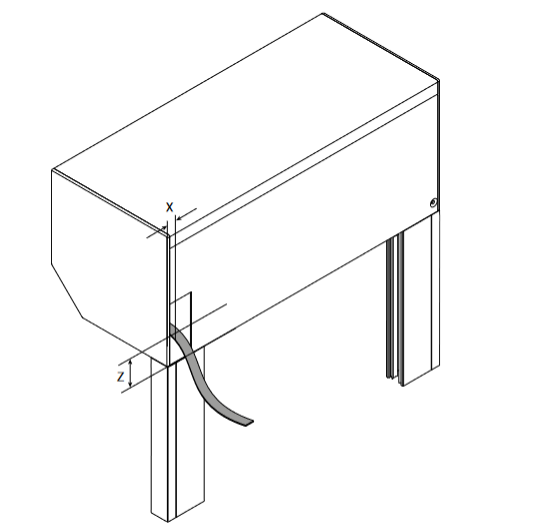

To do this, adjust the belt passage. The distance between the edge and the lintel should be equal to the roller shutter box

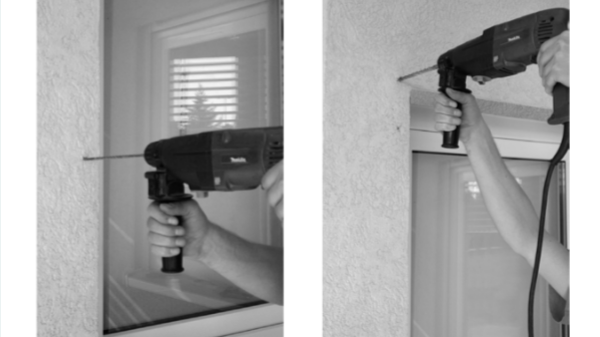

To drill the belt hole, use a 18 mm drill (15 mm belt).

Before drilling the holes, take the
Remove the roller shutter again so that it will be easier later,
to attach the guide rails.

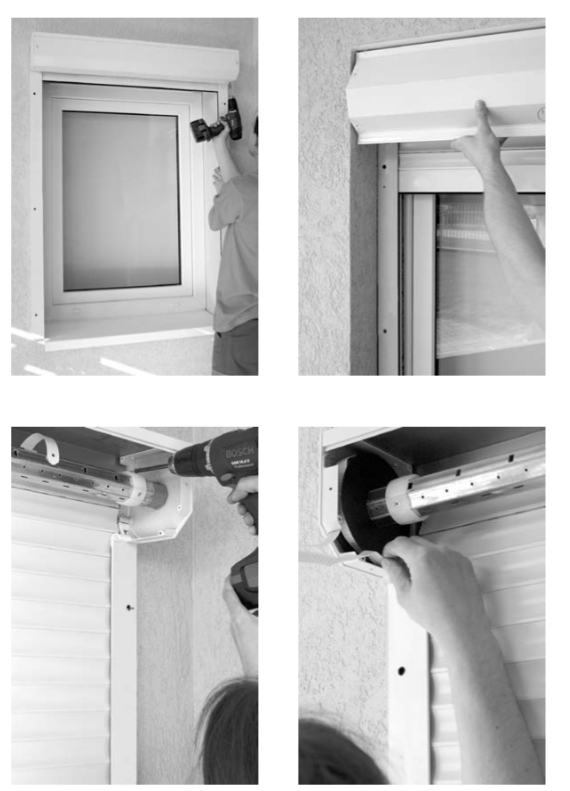

Now the roller shutter can be screwed back
Tighten the guide rails. Remember that
Pull the strap/cable through the opening beforehand.
Now pull the roller shutter curtain carefully and
slowly down. The belt should now be threaded through the guide.
Avoid twisting the belt.
The guide rollers can now be screwed to the inside of the window frame/masonry.

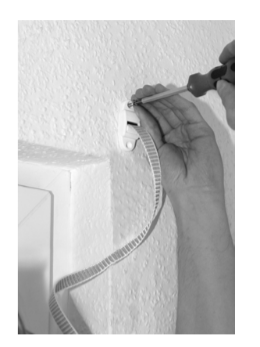

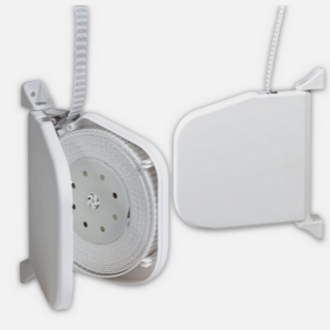

The belt winder can now be installed.

Den Gurt nun in den Gurthalter einlegen. Der Gurthalter ist bereits vorgespannt. Montieren Sie den Gurthalter an der Wand auf einer kompfortabelen Höhe.
