GLADI8A
roller shutter beige
roller shutter beige

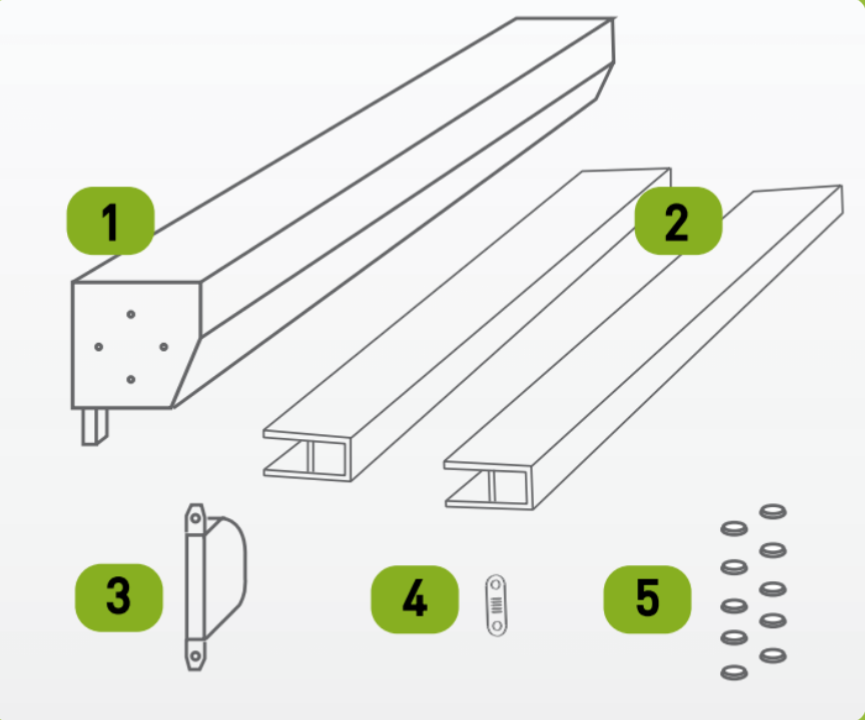

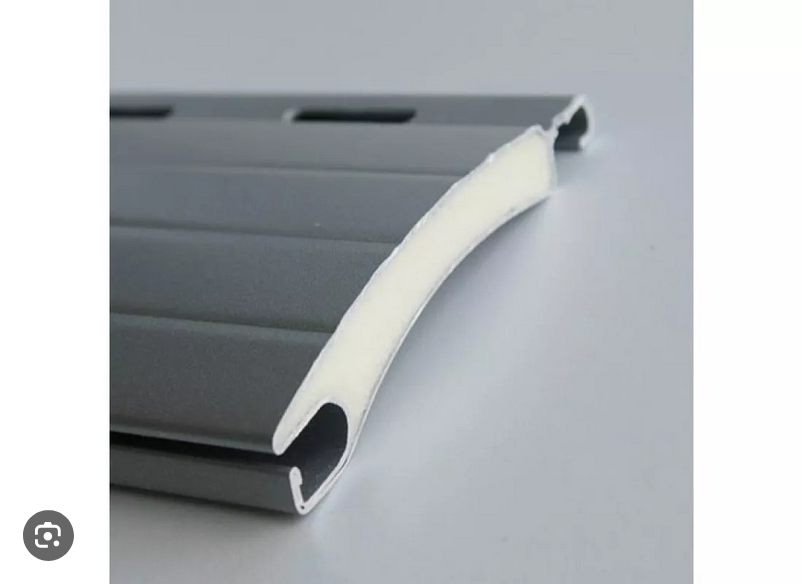

Complete roller shutter system in beige. Consists of powder-coated aluminum roller shutter box with reinforced box side panels, foamed 37 mm aluminum slats and pre-drilled 53 mm guide rails made of extruded aluminum including cover caps, belt and belt holder.
All dimensions in millimeters (mm)
1 inch = 25.4 mm
- including tax
- including delivery
- including customs
Couldn't load pickup availability

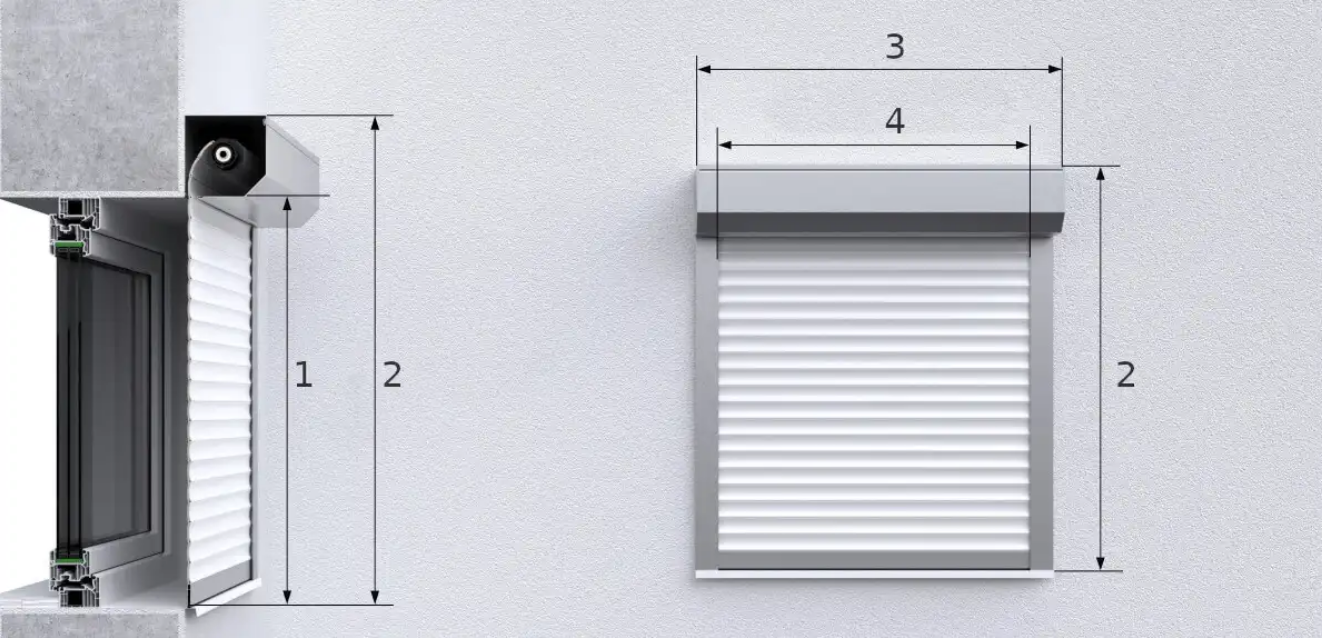

Determination of order sizes
measured height
the reveal opening (LH)
order height (H)
order width (B)
measured width
the reveal opening (LB)
Notes on dimensions
All products are made especially for you and therefore cannot be returned.
-

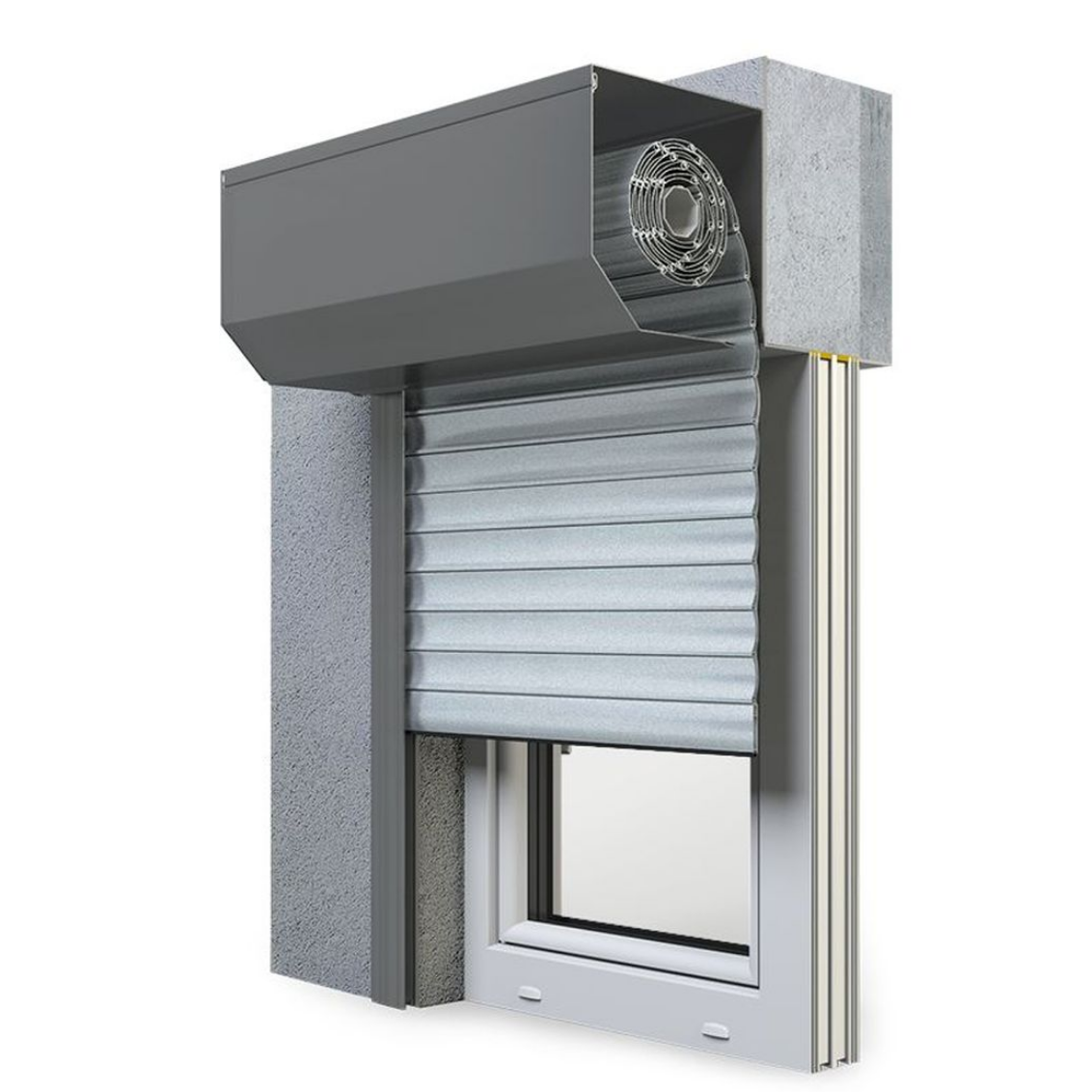

The roller shutter box is mounted on the wall above the window opening, with the guide rails on the facade to the left and right of the window.
-
-
Calculation Ordering Length:
Length 1 (or LH ) + 150 mm (up to 1720 mm) or +180 mm (from 1721 mm) for roller blind box
Calculation Order Specification Width:

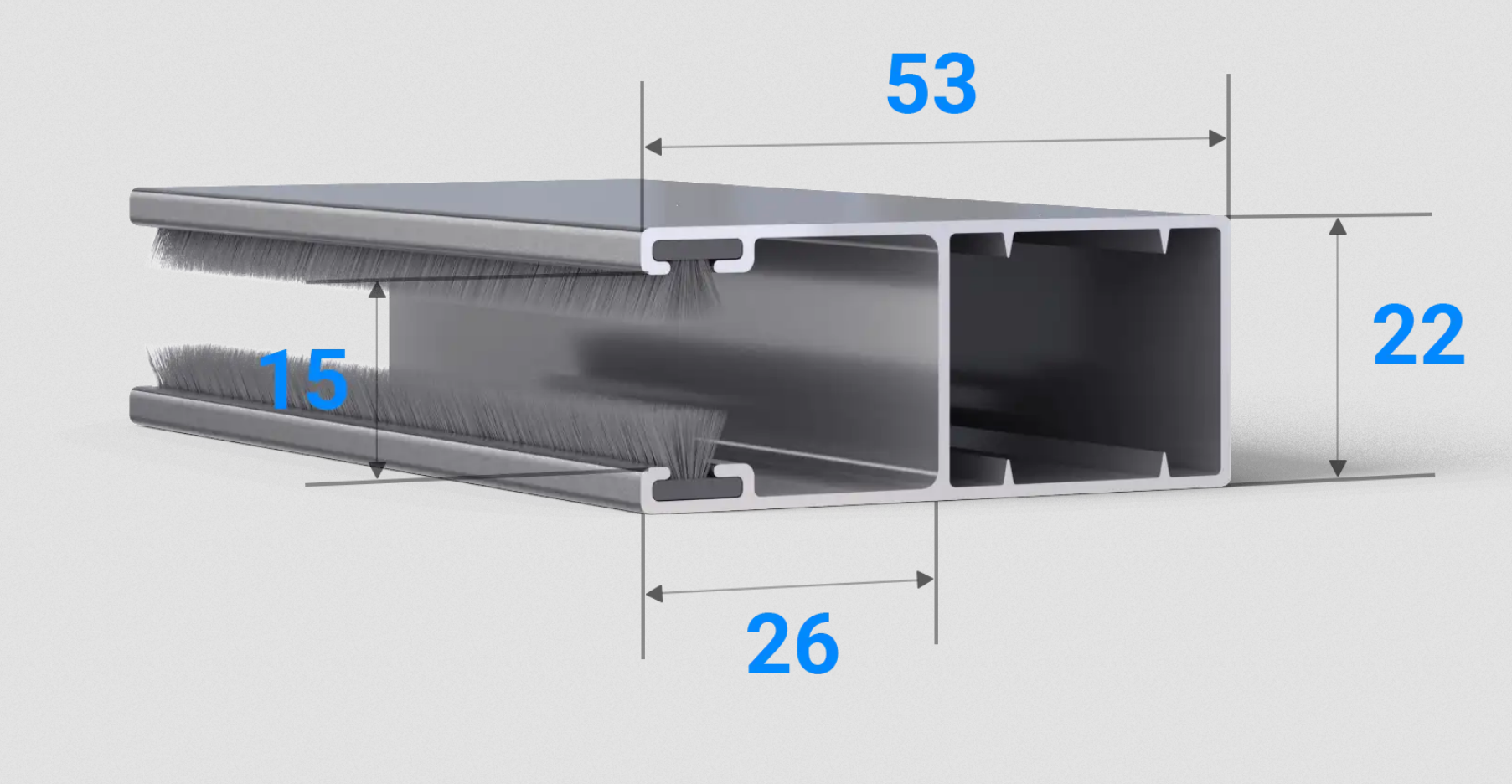

Width 4 (or LB ) + 106 mm (for 2 x 53 mm side rails)
Example: Length 1 (or LH ) measured 1200 mm. →Order size: 1350 mm (entry in field Height H )
Example: Width 4 (or LB ) 900 mm → Order size: 1006 mm ( entry in field Width B)
When taking measurements, make sure that there are no obstacles that could prevent the roller shutter from closing. The house wall must be flat enough to allow the guide rails to be installed. Rough plaster, for example, is not suitable for this.
Length 1 (or LH) up to 1720mm

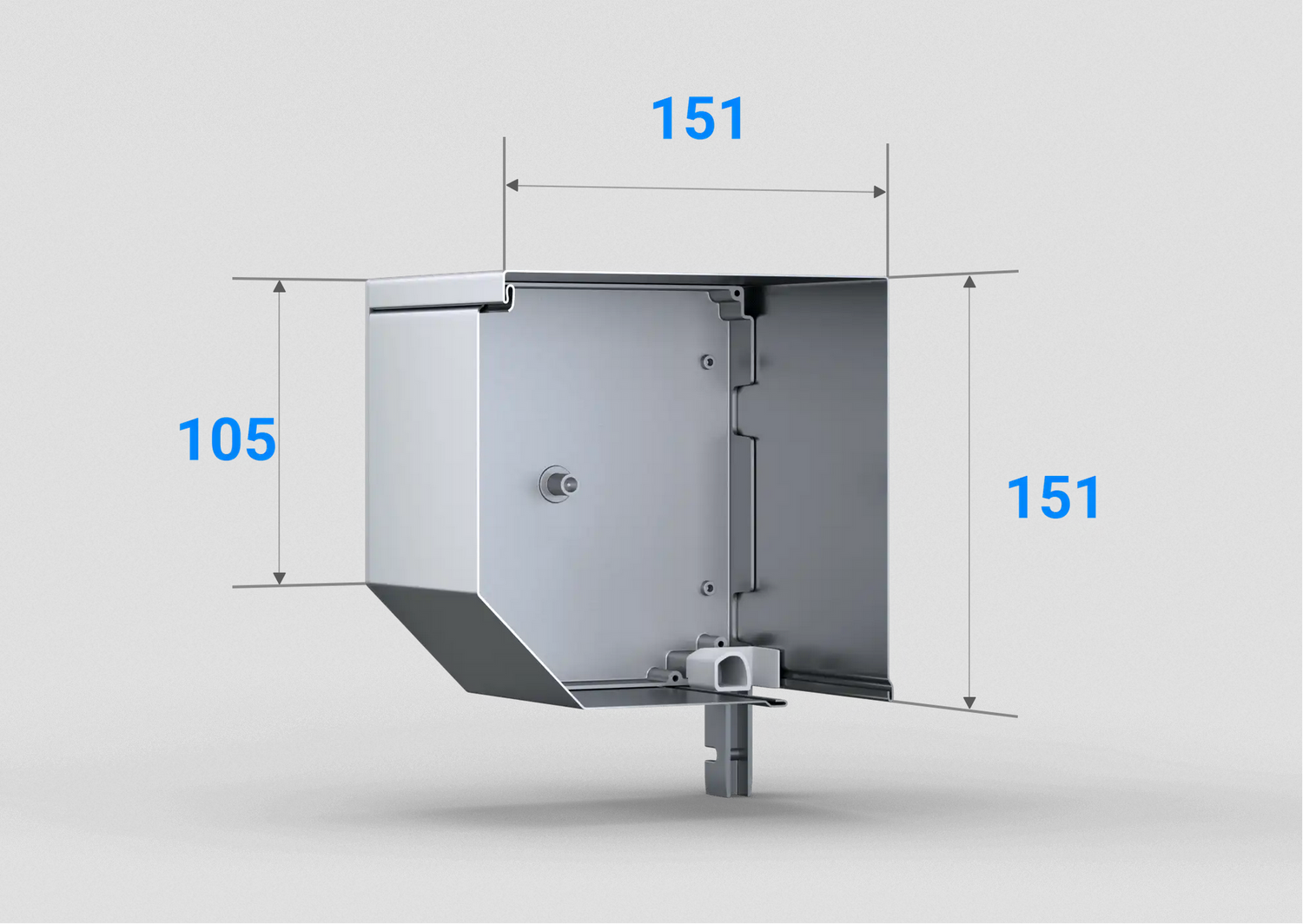

Up to a length ( 1 or LH ) of 1720 mm, 150 mm are to be added to determine the order length ( 2 or H )
Length 1 (or LH) over 1720mm

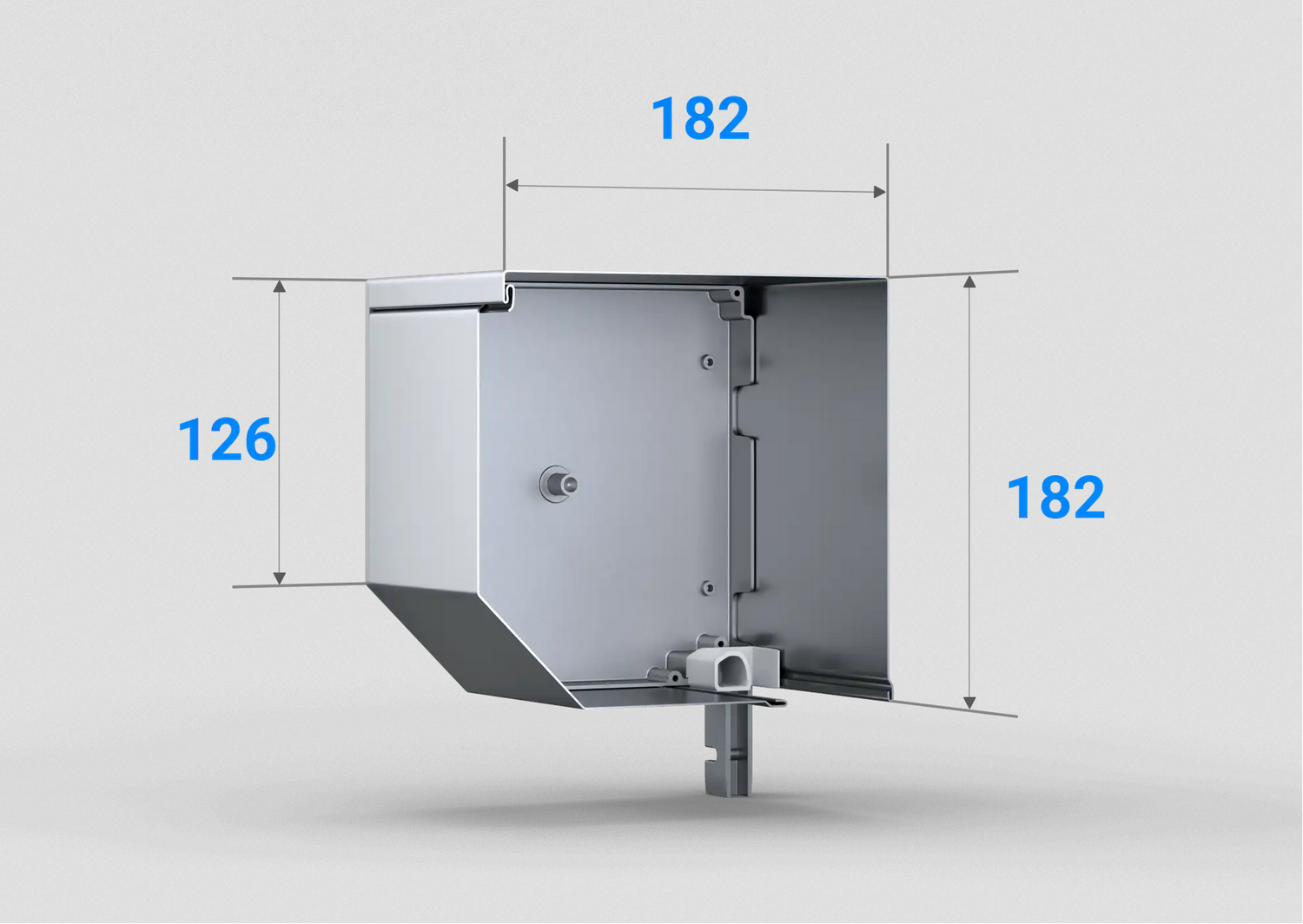

From a length ( 1 or LH ) of 1721 mm, 180 mm must be added to determine the order length ( 2 or H )
belt exit

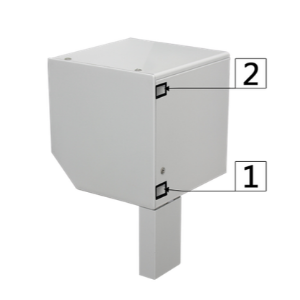

In addition to the dimensions, the belt outlet on the roller blind box can be selected. We recommend choosing the outlet at the top. With low ceiling heights, an outlet "at the bottom" may also be an option.

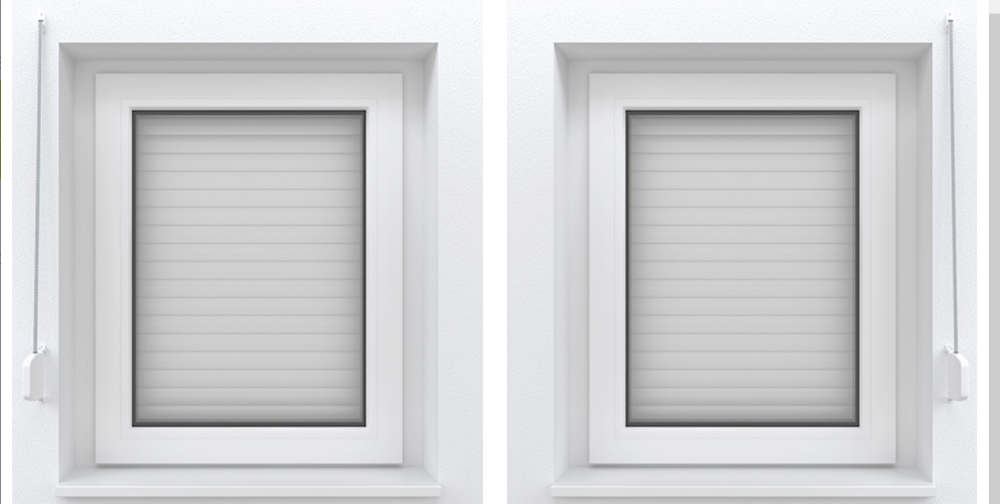

... you also have to choose the side of the belt holder. The position of the belt holder can be left or right. Please note that the information given here is from the view from the inside of the room looking at the window.
